The ZIMO System

The main components of the ZIMO system are: MX10 command station or MX10EC Economy command station ( both by default with MiWi radio module), controllers MX32 and MX32FU (with or without radio) and the "StEin" modules (replacing the old MX8 and MX9).

The ZIMO system startsets

As an introduction to the systems, the following sets are offered:

  • STARTcommand station MX10 + controller MX32, CAN cable + 320 Watt power supply
  • STARTFUcommand station MX10 + controller MX32FU (MiWi) + CAN cable + 320 Watt power supply
  • STARTECFUcommand station MX10EC + controller MX32FU (MiWi) + CAN cable + 320 Watt power sup.
  • STARTWMcommand station MX10 + 320 Watt power supply + Roco WLAN-Maus + router + accessory
  • STARTECWMcommand station MX10EC + 320 Watt power supply + Roco WLAN-Maus + router + access.
  • STARTGcommand station MX10 + controller MX32 + CAN cable + 600 Watt power supply
  • STARTGFUcommand station MX10 + controller MX32FU (MiWi) + CAN cable + 600 Watt power supply


The "StEin"modules (stationary equipment modules)

The StEin modulesare components of the digital control system, and are used in combination with a ZIMO command station MX10 as digital central. The the StEin modules all stationary equipment of a model railroad layout are connected. This is track sections (with occupancy detection and loco-number recognition, full RailCom functionality, overcurrent/short circuit handling, ZIMO HLU), accessory articles (switches, signals, decouplers), point detectors and position indicators (contact rails, photoelectric sensors, etc) as well as speakers (for platform announcements, and others).



The individual products of the ZIMO system  (list without small articles)


MX10 Command station (digital central), DCC/MM, 12 + 8 A, CAN bus, XNET,USB, LAN, MiWi-radio, etc.
MX10EC command station (digital central) as an economy edition, 12 A, the rest almost like MX10
NG320 power supply (also as additional unit) for MX10; 30 V DC, 10 A (320 Watt)
NG600 power supply (high performance) for MX10; 30 V DC, 20 A (600 Watt)
MX32 controller MX32, tethered edition
MX32FU controller MX32, MiWi radio or tethered, battery 2200 mAh, built-in charging unit
6POL...M 6-pole CAN bus cable ("normal" controller cable) in various lengths (see price list)
8POLA..M 8-pole CAN bus cable to connect to booster devices and StEin modules
(MX32ZL) "central controller", controller with built-in command station (up to 4 A)      planned
STEIN88G Stationary equipment module "StEin" fully featured (8 track sections, 8 switches, etc.)
STEIN80G Stationary equipment module "StEin" partially featured (only 8 track sections)
STEINE8W "StEin"-expansion board for 8 switches (coils, motor, EPL)
STEINE8S "StEin" expansion board for 8 servo motors
STEINE8G "StEin"-expansion boards for 8 track sections (on economical outputs)
ICA16LP connection board on a I2C bus for 16 signal lights, with solder pads
ICA16KL connection board on a I2C bus for 16 signal lights, with screw terminals


Devices of the current system with the old system

The controller MX32 can also be used to expand "old" systems (based on MX31) instead of MX31. MX32 can be connected via CAN cable, but not via radio.



RailCom is a registered trademark of the Lenz Elektronik GmbH.

  Basisgerät MX10
        The command station MX10 (digital command station)

MX32 MX32FU Roco Wlan-Maus

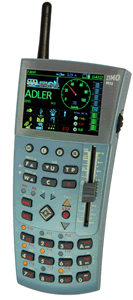

controller MX32       controller MX32FU     Roco WLAN-Maus



         "StEin" (stationary equipment module) STEIN88V
